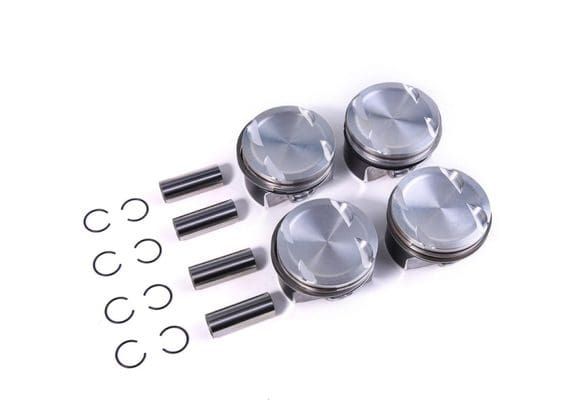

Piston & Ring Set for Audi / VW EA211 1.4 TSI – 74.5mm Standard – 04E107065ED / 04E107065HM

Upgrade or rebuild your EA211 1.4 TSI engine with this standard-size piston and piston ring set, designed for selected Audi, Volkswagen, Škoda, and SEAT applications.

Manufactured as a replacement for selected EA211 1.4 TSI petrol engines, this piston features a 74.5 mm standard bore diameter and 19 mm piston pin.

Due to variations between engine codes and production years, VIN/chassis number and engine-code verification is strongly recommended before purchase.

Product Specifications

• Product Type: Piston & Piston Ring Set
• Engine Family: EA211
• Engine Capacity: 1.4 TSI
• Piston Diameter: 74.5 mm
• Piston Size: Standard / STD
• Piston Pin Diameter: 19 mm
• Fuel Type: Petrol
• Condition: Brand New
• Application: Engine rebuild and piston replacement

Reference / Compatible Part Numbers

• 04E107065ED / 04E 107 065 ED
• 04E107065HM / 04E 107 065 HM
• 04E107065GN / 04E 107 065 GN
• 04E107065GR / 04E 107 065 GR
• 04E107065FA / 04E 107 065 FA
• 04E107065GM / 04E 107 065 GM
• 04E198151F / 04E 198 151 F
• 04E198151B / 04E 198 151 B

Audi Compatibility

• Audi A1 – 2015–2018 – 1.4 TSI – CZCA / CZDD
• Audi A3 – 2013–2020 – 1.4 TSI – CXSA / CXSB / CZCA
• Audi A3 Cabriolet – 2015–2020 – 1.4 TSI – CZEA
• Audi A4 – 2016–2020 – 1.4 TSI – CVNA
• Audi A4 Avant – 2016–2020 – 1.4 TSI – CVNA
• Audi Q2 – 2017–2020 – 1.4 TSI – CZEA
• Audi Q3 – 2015–2020 – 1.4 TSI – CZDA / CZDB
• Audi A5 Coupe – 2017–2020 – 1.4 TSI – CVNA
• Audi A5 Sportback – 2017–2020 – 1.4 TSI – CVNA

Volkswagen Compatibility

• VW Scirocco – 2015–2018 – 1.4 TSI – CZDA / CZDC
• VW Golf Sportsvan – 2014–2020 – 1.4 TSI – CZDA
• VW Golf – 2016–2020 – 1.4 TSI – CZDA / CHPA
• VW Golf Variant – 2016–2020 – 1.4 TSI – CZDA / CHPA
• VW Jetta – 2015–2018 – 1.4 TSI – CZDA
• VW Passat – 2015–2020 – 1.4 TSI – CZDA
• VW Passat Variant – 2015–2020 – 1.4 TSI – CZDA
• VW Touran – 2016–2020 – 1.4 TSI – CZDA
• VW Tiguan – 2016–2020 – 1.4 TSI – CZDA
• VW Sharan – 2016–2020 – 1.4 TSI – CZDA
• VW Beetle – 2017–2019 – 1.4 TSI – CZDA
• VW Beetle Cabriolet – 2017–2019 – 1.4 TSI – CZDA

Škoda Compatibility

• Škoda Kodiaq – 2017–2020 – 1.4 TSI – CZCA
• Škoda Superb – 2015–2020 – 1.4 TSI – CZDA
• Škoda Yeti – 2014–2018 – 1.4 TSI – CZDA

SEAT Compatibility

• SEAT Leon – 2017–2020 – Selected 1.4 TSI EA211 applications

Important Fitment Information

• VIN/chassis number verification is strongly recommended before ordering.
• Compatibility should not be determined by vehicle model and year alone.
• EA211 1.4 TSI engines may use different piston specifications depending on the engine code and production date.
• Confirm the OEM/reference part number before purchase.
• Confirm the engine code before purchase.
• Confirm the 74.5 mm piston diameter.
• Confirm the 19 mm piston pin diameter.
• Compare the piston crown and physical design with the existing piston where possible.
• Professional installation by a qualified engine technician or engine rebuilder is recommended.
• Cylinder bore condition, piston clearance, piston ring gaps, connecting rods and associated components should be checked before installation.

Please provide your VIN/chassis number and engine code if you require assistance confirming compatibility before ordering.
