MR-LFP48-200-WMD – 10.44kWh LiFePO4 Lithium Battery (51.2V / 204Ah)

MR-LFP48-200-WMD – 10.44kWh LiFePO4 Lithium Battery (51.2V / 204Ah)

R 34,500.00 ZAR
R 34,500.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

MR-LFP48-200-WMD

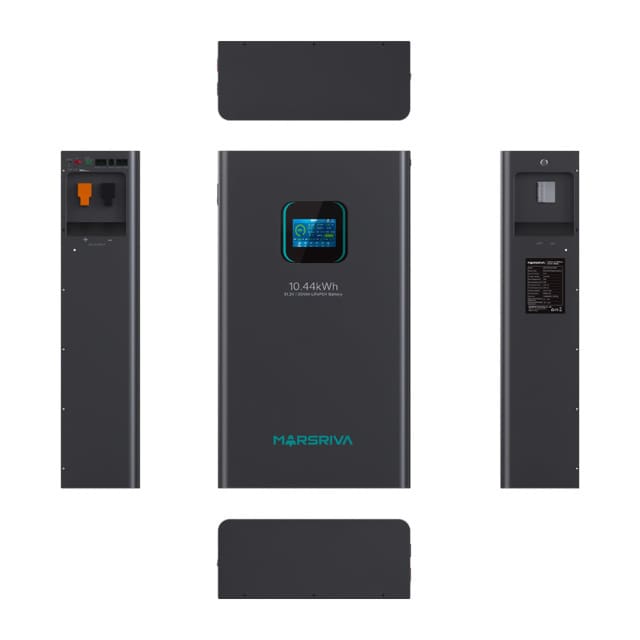

MR-LFP48-200-WMD – 10.44kWh LiFePO4 Lithium Battery (51.2V / 204Ah)

Grade A Cells | Wall Mount or Floor Standing | Built-in BMS

Product Overview

The MR-LFP48-200-WMD is a premium LiFePO4 (Lithium Iron Phosphate) battery designed for reliable energy storage in residential, commercial, and backup power systems. Built with Grade A cells, this battery delivers exceptional cycle life, high efficiency, and enhanced safety, making it an ideal solution for modern solar and hybrid systems.

Key Features

  • High Capacity – 10.44kWh
    Provides extended backup time for homes and businesses.

  • Grade A LiFePO4 Technology
    Offers superior safety, thermal stability, and long lifespan compared to traditional batteries.

  • 6000+ Cycle Life
    Designed for long-term performance with ≥6000 cycles at 25°C.

  • Built-in Battery Management System (BMS)
    Ensures protection against overcharge, over-discharge, overheating, and short circuits.

  • Scalable System Design
    Supports parallel connection of up to 15 units for expanded energy storage.

  • Wide Temperature Range Operation
    Reliable performance in diverse environmental conditions.

  • Flexible Installation
    Suitable for wall-mounted or floor-standing configurations.

  • Integrated 4.3-Inch Touchscreen
    Provides easy system monitoring and control.

  • Built-in Aerosol Fire Extinguisher
    Enhances safety and protection in critical conditions.

  • Robust Construction
    Manufactured using SPCC high-quality cold-rolled steel for durability and structural strength.

    • Technical Specifications

    Battery

  • Model: MR-LFP48-200-WMD

  • Battery Type: LiFePO4 (Grade A)

  • Nominal Voltage: 51.2V

  • Capacity: 204Ah

  • Storage Capacity: 10.44kWh

  • Internal Resistance: ≤13.9mΩ

    • Performance

  • Cycle Life: ≥6000 cycles @ 25°C (to 70% EOL)

  • Design Life: ≥10 years

  • Max Charging Current: 210A

  • Max Discharging Current: 210A

  • Peak Charging Current: 215A (2 seconds)

  • Peak Discharging Current: 215A (2 seconds)

    • Operating Conditions

  • Charging Temperature: 0°C to 55°C

  • Discharging Temperature: -20°C to 55°C

  • Storage Temperature: -30°C to 35°C

  • Humidity: 5% – 95%

    • Communication & Expansion

  • Communication Protocols: RS485, CAN

  • Parallel Capability: Up to 15 units

    • Physical Specifications

  • Dimensions (L × W × H): 485 × 200 × 850 mm

  • Weight: 86 kg

    • Applications

  • Residential solar energy storage

  • Hybrid and off-grid systems

  • Backup power solutions

  • Commercial energy storage systems

    • Why Choose This Battery?

    The MR-LFP48-200-WMD combines high energy density, long lifespan, and advanced safety features in a durable, scalable design. Whether for backup or full energy independence, it delivers consistent and dependable performance.
