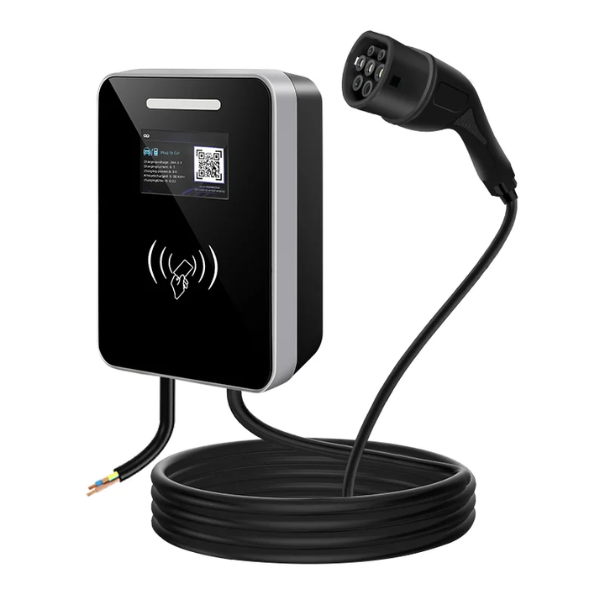

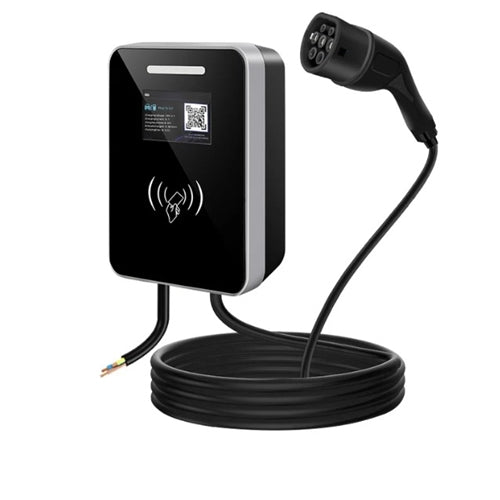

Home EV Charger 7.4kW / 32A Single Phase

7.4kW Single-Phase AC EV Charger | 32A | Type 2 | WiFi / 4G / Bluetooth | OCPP 1.6

Professional 7.4kW single-phase AC EV charger designed for residential, commercial and workplace charging installations. Suitable for indoor or outdoor use, with multiple start options, smart connectivity and comprehensive electrical protection.

Key Specifications

• Model: MRS-ES-07032
• Charging Standard: IEC 62196-2
• Maximum Power: Approximately 7.4kW
• Output Current: 32A
• Input Voltage: AC 220V-240V
• Output Voltage: AC 220V-240V
• Phase: Single Phase
• Frequency: 50Hz / 60Hz
• Connection Type: Bare wire input - no mains plug supplied
• Cable Length: 5 metres
• Standby Power Consumption: Approximately 3W
• Protection Rating: IP54
• Operating Temperature: -30°C to +50°C
• Operating Humidity: 5%-95% non-condensing
• Maximum Operating Altitude: Below 2000m
• Cooling: Natural cooling
• Flame Retardant Rating: UL94 V-0

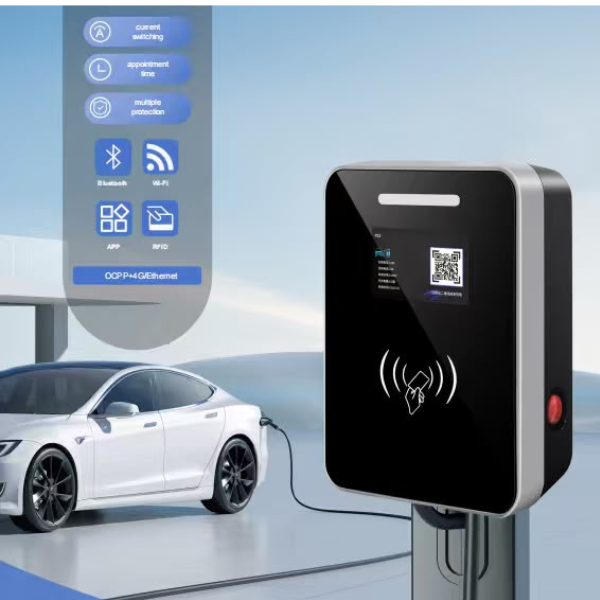

Smart Charging Options

Depending on configuration, the charger supports:

• Plug-and-play charging
• RFID / card swipe start
• APP-controlled charging
• Bluetooth connectivity
• WiFi connectivity
• 4G connectivity
• Combined 4G + WiFi connectivity
• OCPP 1.6 support

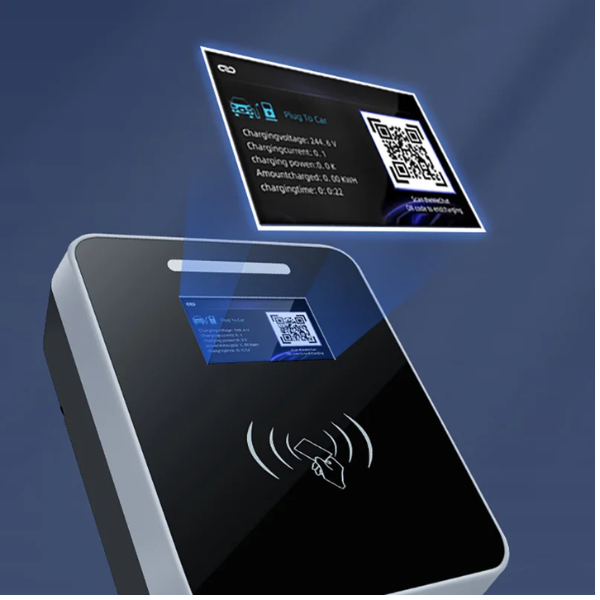

Display & Controls

• 4.3-inch LCD display
• LED status indicator
• Clear charging information and operating status
• Smart control functionality depending on selected configuration

Installation

• Suitable for wall mounting
• Compatible with column / pedestal mounting
• Bottom cable entry and bottom cable exit
• Wall-mount screws and fixing pads included
• Suitable for indoor and outdoor installations
• Hardwired electrical connection

Safety Protection

Built-in protection includes:

• Over-voltage protection
• Under-voltage protection
• Overload protection
• Over-current protection
• Over-temperature protection
• Leakage protection
• Grounding protection
• Lightning protection
• Static electricity protection
• Flame-retardant protection

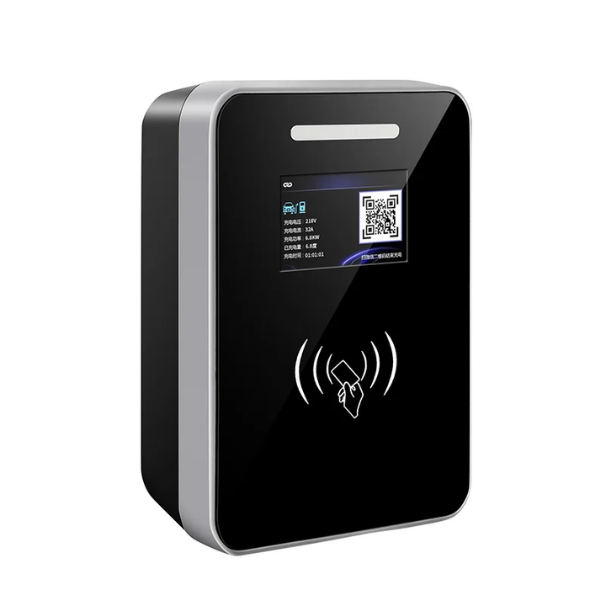

Construction

• Charging connector manufactured from PC9330
• Control box manufactured from ABS + PC
• Tempered glass front panel
• Durable construction suitable for everyday charging environments

Dimensions & Weight

• Charging Connector: 230 x 70 x 60mm
• Control Box: 280 x 230 x 95mm
• Net Weight: 5.1kg
• Gross Weight: 6kg
• Packaging Size: 380 x 200 x 210mm

Certifications

• CE
• RoHS
• CB
• IEC 62196-2 compliant

Important Installation Note

This is a single-phase 32A EV charger operating at approximately 220V-240V AC, providing a maximum charging output of approximately 7.4kW.

The charger is supplied with a bare-wire electrical connection rather than a standard wall plug.

Installation should be carried out by a qualified electrician, with the correct circuit protection, cable sizing, earthing and electrical supply confirmed before installation.

Important: Actual charging speed also depends on the vehicle's onboard AC charger. A vehicle limited to 3.6kW or 7.2kW AC charging will not exceed its own maximum charging rate.
