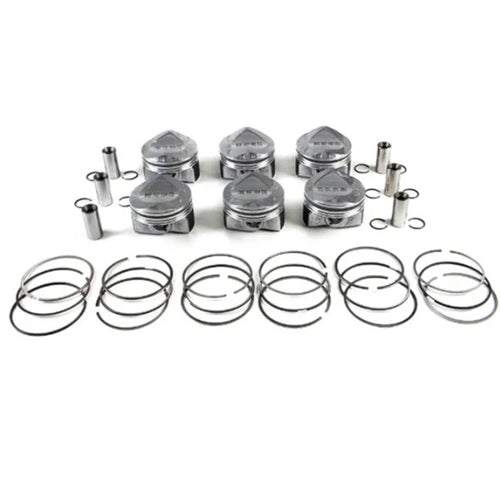

Audi VW EA211 1.4 TSI Piston & Ring Set 76.5mm Oversized 0.50 – 04E107065ED / 04E107065HM

Restore your engine with this Piston & Ring Set, designed for selected Audi, Volkswagen, Škoda and SEAT vehicles equipped with compatible EA211 1.4 TSI petrol engines.

Manufactured for engine rebuilding and reconditioning applications, this piston features a 76.5 mm cylinder bore specification, 29 mm compression height and 19 mm piston pin diameter.

Due to the different piston configurations used across the EA211 engine family, compatibility should always be confirmed using the OEM/reference number, engine code, piston dimensions and VIN/chassis number before ordering.

Product Specifications

• Product Type: Piston & Piston Ring Set
• Engine Family: EA211
• Engine Capacity: 1.4 TSI
• Cylinder Bore: 76.5 mm
• Compression Height: 29 mm
• Piston Length / Overall Height: 48 mm
• Piston Pin Diameter: 19 mm
• Piston Pin Length: 54 mm
• Fuel Type: Petrol
• Condition: Brand New
• Application: Engine rebuild / piston replacement / cylinder reconditioning
• Fitment: Selected Audi, Volkswagen, Škoda and SEAT applications

Reference / Compatible Part Numbers

• 04E107065ED / 04E 107 065 ED
• 04E107065HM / 04E 107 065 HM
• 04E107065GN / 04E 107 065 GN
• 04E107065GR / 04E 107 065 GR
• 04E107065FA / 04E 107 065 FA
• 04E107065GM / 04E 107 065 GM
• 04E198151F / 04E 198 151 F
• 04E198151B / 04E 198 151 B

Audi Compatibility

• Audi A1 – 2015–2018 – 1.4 TSI – CZCA / CZDD
• Audi A3 – 2013–2020 – 1.4 TSI – CXSA / CXSB / CZCA
• Audi A3 Cabriolet – 2015–2020 – 1.4 TSI – CZEA
• Audi A4 – 2016–2020 – 1.4 TSI – CVNA
• Audi A4 Avant – 2016–2020 – 1.4 TSI – CVNA
• Audi A5 Coupe – 2017–2020 – 1.4 TSI – CVNA
• Audi A5 Sportback – 2017–2020 – 1.4 TSI – CVNA
• Audi Q2 – 2017–2020 – 1.4 TSI – CZEA
• Audi Q3 – 2015–2020 – 1.4 TSI – CZDA / CZDB

Volkswagen Compatibility

• VW Scirocco – 2015–2018 – 1.4 TSI – CZDA / CZDC
• VW Golf Sportsvan – 2014–2020 – 1.4 TSI – CZDA
• VW Golf – 2016–2020 – 1.4 TSI – CZDA / CHPA
• VW Golf Variant – 2016–2020 – 1.4 TSI – CZDA / CHPA
• VW Jetta – 2015–2018 – 1.4 TSI – CZDA
• VW Passat – 2015–2020 – 1.4 TSI – CZDA
• VW Passat Variant – 2015–2020 – 1.4 TSI – CZDA
• VW Touran – 2016–2020 – 1.4 TSI – CZDA
• VW Tiguan – 2016–2020 – 1.4 TSI – CZDA
• VW Sharan – 2016–2020 – 1.4 TSI – CZDA
• VW Beetle – 2017–2019 – 1.4 TSI – CZDA
• VW Beetle Cabriolet – 2017–2019 – 1.4 TSI – CZDA

Škoda Compatibility

• Škoda Kodiaq – 2017–2020 – selected 1.4 TSI – CZCA
• Škoda Superb – 2015–2020 – selected 1.4 TSI – CZDA
• Škoda Yeti – 2014–2018 – selected 1.4 TSI – CZDA

SEAT Compatibility

• SEAT Leon – 2017–2020 – selected 1.4 TSI applications
• Selected additional SEAT models fitted with compatible EA211 1.4 TSI engines

Key Features

• Designed for selected EA211 1.4 TSI petrol engines
• 76.5 mm cylinder bore specification
• 19 mm piston pin diameter
• 29 mm compression height
• Supplied with corresponding piston rings
• Suitable for professional engine rebuilding and reconditioning
• Designed to restore correct piston operation when matched to the appropriate engine specification
• Suitable as a replacement for multiple listed OE/reference numbers

Important Fitment Information

• VIN/chassis number and engine-code verification are strongly recommended before purchase.
• Do not determine compatibility based solely on the vehicle make, model, year or 1.4 TSI engine capacity.
• Different versions of the EA211 engine may use different pistons despite having the same engine capacity.
• Confirm the 76.5 mm cylinder bore specification before ordering.
• Confirm the 19 mm piston pin diameter and 54 mm pin length.
• Confirm the 29 mm compression height.
• Confirm the piston crown, valve reliefs and overall physical design against the original piston.
• Cross-reference the original OEM number wherever possible.
• The supplied piston should be physically measured before any machining work is performed.

Professional Installation Recommended

Pistons are precision internal engine components and should be installed by a qualified automotive technician, engine engineer or professional engine rebuilder.

Before installation:

• Measure and inspect the cylinder bore.
• Check for cylinder wear, scoring, taper and out-of-round conditions.
• Measure the actual supplied piston.
• Confirm the required piston-to-cylinder wall clearance.
• Check piston ring end gaps before final assembly.
• Inspect the connecting rods and small-end bushes where applicable.
• Confirm piston pin fitment.
• Ensure all components are correctly lubricated during assembly.
• Follow the correct engine assembly and torque specifications.

Important Notice

Please confirm the required dimensions before ordering.

The specifications for this listing are 76.5 mm cylinder bore, 29 mm compression height, 48 mm piston length, 19 mm piston pin diameter and 54 mm piston pin length.

Because piston specifications can vary between EA211 engine codes and production revisions, the dimensions and reference numbers should be matched to the original components before installation.

For fitment assistance, provide your VIN/chassis number, engine code and original piston part number where available.
