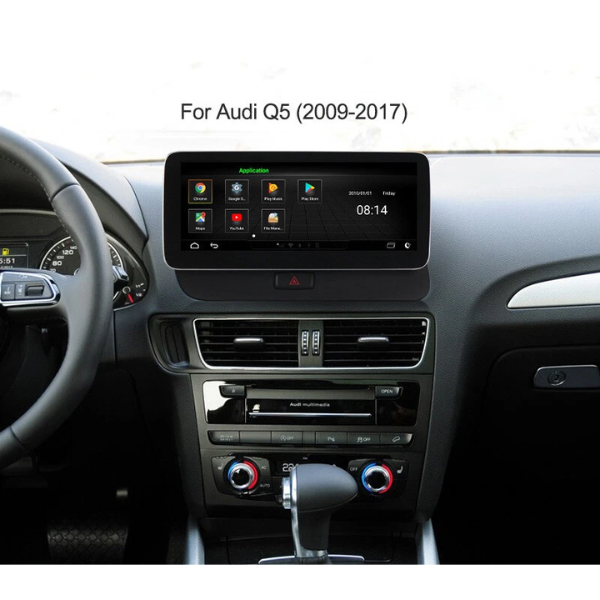

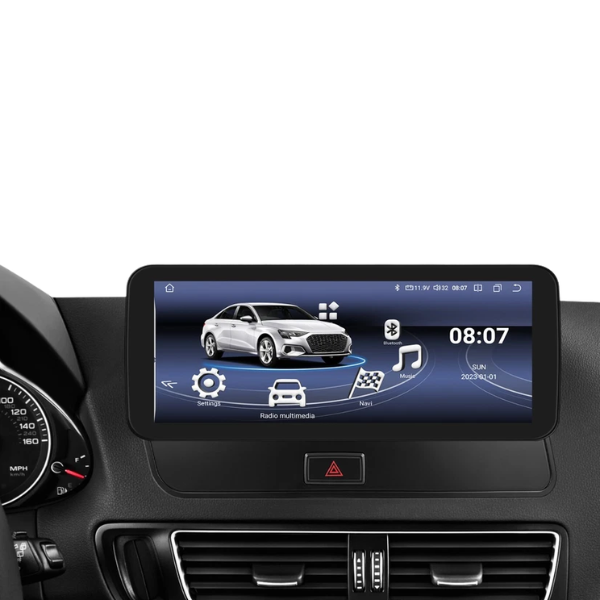

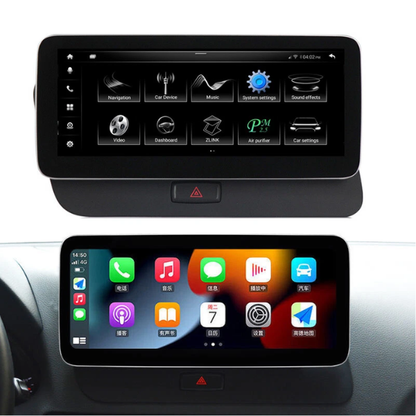

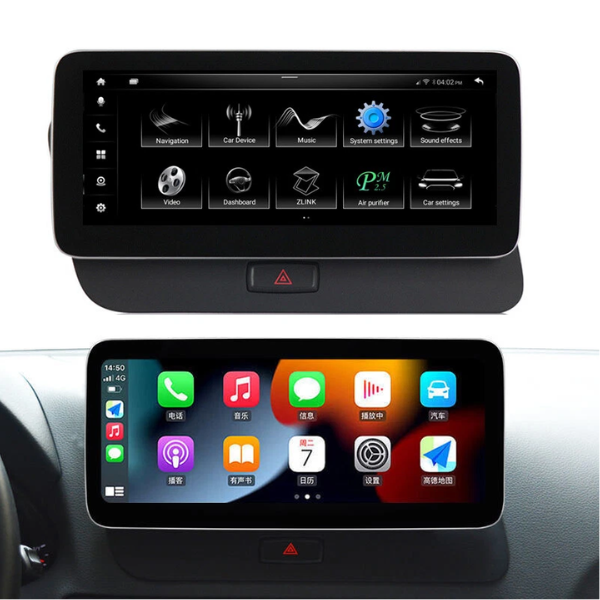

Audi Q5 10.33" Android Intelligent Multimedia Upgrade

HIGH SPEC VERSION ONLY - NOT SUITABLE FOR LOW SPEC AUDI Q5

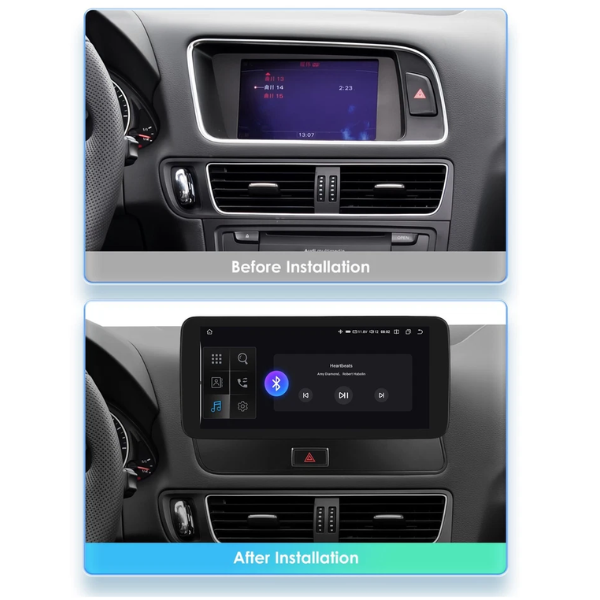

Transform your factory Audi display into a modern, high-performance Android multimedia system while retaining supported original vehicle functions.

This system replaces the original TFT monitor with an intelligent touchscreen display and integrates with the vehicle's existing radio, amplifier, steering controls, CANBUS system, parking functions and other supported factory features.

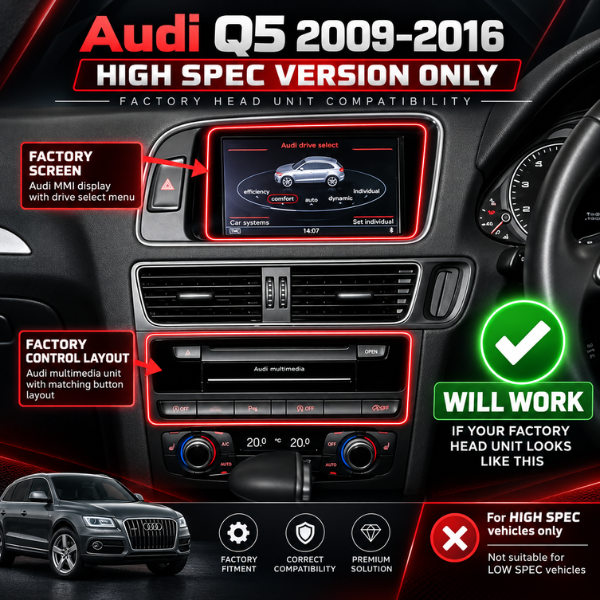

IMPORTANT COMPATIBILITY NOTICE

This unit is specifically for HIGH SPEC Audi Q5 vehicles only.

It is NOT suitable for the LOW SPEC Audi Q5 fitted with the Audi Concert / Symphony-style system.

The High Spec version typically features the factory Audi MMI multimedia system, including the corresponding factory display and MMI control layout.

Before ordering, please compare your dashboard and centre console with our compatibility images.

If you are unsure, send us clear photographs of:

• Your original factory screen
• The radio / multimedia control panel
• The controls around the gear selector

We can assist with confirming the correct version before purchase.

Upgrade Your Factory System

The multimedia upgrade is designed to retain supported original Audi functionality while adding the flexibility and features of an Android-based entertainment and navigation system.

Original Vehicle Integration

Depending on the vehicle specification, the system supports:

• Original Audi radio functionality
• Factory amplifier integration
• Original steering-wheel controls
• Factory CANBUS vehicle information
• Door and vehicle status information
• Original Bluetooth functionality
• Built-in Android Bluetooth
• Factory MMI / joystick controls
• Original reverse camera
• Factory reverse trajectory
• Original parking radar
• Factory parking trajectory
• Vehicle information menus
• Original audio system integration

Simple Integrated Design

The system is designed as an integrated screen upgrade.

There is no bulky external Android display box required in the normal installation configuration, helping provide a cleaner installation and more factory-style appearance.

Technical Specifications

Android System

• Operating System: Android 12
• Processor: 8581A 8-Core, 64-bit
• Performance Cores: 4 x A73 up to 2.0 GHz
• Efficiency Cores: 4 x A53 up to 1.8 GHz
• GPU: Adreno 610, up to 950 MHz
• Internal Storage: 64GB EMMC 5.1
• Expandable Storage: SD card support up to 128GB
• USB: Supports up to 4 x USB 2.0 ports

Display

Supported display resolutions include:

• 1280 x 480
• 1920 x 720
• 1024 x 600
• 1280 x 720

Resolution may vary according to the specific unit and vehicle application.

Video Playback

Supports high-definition multimedia playback, including:

• 4K Ultra HD video
• H.264 / AVC
• H.265 / HEVC

Wi-Fi Connectivity

Dual-Band Wi-Fi

Supports both:

• 2.4GHz Wi-Fi
• 5GHz Wi-Fi

Wi-Fi Specifications

• Frequency range: 2.4 - 2.496 GHz
• 5GHz range: 4.9 - 5.85 GHz
• Maximum theoretical data rate: up to 433 Mbps
• Standards: IEEE 802.11 a/b/g/n/ac
• Wi-Fi Direct: Supported

Please note: Wi-Fi performance depends on the connected hotspot/router, signal strength and surrounding environment.

Bluetooth 5.0

The system supports Bluetooth 5.0 + BR/EDR + BLE.

Supported Bluetooth profiles include:

• HFP - Hands-Free Calling
• A2DP - Bluetooth Audio Streaming
• AVRCP - Media Control
• SPP - Serial Communication

Additional specifications:

• Bluetooth/Wi-Fi coexistence supported
• Maximum transmit power: approximately 9 dBm
• Maximum receive sensitivity: approximately -91 dBm
• Typical transmission range: up to approximately 10 metres under suitable conditions

Important Bluetooth Notice

Bluetooth performance and connection strength are also affected by the quality, Bluetooth hardware, software and compatibility of the mobile device being connected.

Different phones may therefore provide different connection performance.

GPS & Satellite Navigation

The integrated GNSS system supports simultaneous satellite positioning through:

• GPS
• GLONASS
• BeiDou

GNSS Specifications

• GPS frequency: approximately 1575 MHz
• GLONASS frequency: approximately 1601.7 MHz
• BeiDou frequency: approximately 1561 MHz
• Simultaneous tracking: up to 22 channels
• Satellite searching: up to 66 channels
• Tracking sensitivity: approximately -160 dBm
• Hot start: less than approximately 5 seconds
• Cold start: less than approximately 35 seconds
• Positioning accuracy: typically within approximately 3 metres under suitable conditions

Satellite performance depends on location, antenna placement, surrounding buildings and atmospheric conditions.

Factory CANBUS Integration

The system is designed to integrate with the vehicle's factory CANBUS network where supported.

This can retain or display functions such as:

• Steering-wheel controls
• Door-open information
• Vehicle information
• Parking information
• Factory system status
• Original multimedia functions

Actual available functions depend on the exact specification and equipment fitted to the vehicle.

Factory Camera & Parking Support

The system supports integration with compatible original Audi equipment, including:

• Factory rear-view camera
• Reverse trajectory
• Parking radar
• Parking trajectory

Correct configuration during installation is essential for these functions to operate properly.

PROFESSIONAL INSTALLATION REQUIRED

This product is not recommended as a DIY installation.

Professional installation by a qualified automotive multimedia technician is strongly recommended.

The installer must correctly configure:

• CANBUS settings
• Factory MMI integration
• Audio system
• Factory amplifier where applicable
• Steering-wheel controls
• Reverse camera
• Parking radar
• Factory Bluetooth integration
• Android Bluetooth
• Wi-Fi
• GPS antenna
• USB connections
• Display settings
• Original vehicle menu

Incorrect wiring or configuration may result in certain features not operating correctly and does not necessarily indicate a fault with the multimedia unit.

PLEASE CONFIRM BEFORE ORDERING

✅ SUITABLE FOR:

Audi Q5 HIGH SPEC Version

Typically equipped with the factory Audi MMI multimedia system and corresponding MMI controls.

❌ NOT SUITABLE FOR:

Audi Q5 LOW SPEC Version

Vehicles fitted with the Audi Concert / Symphony-style system require a different multimedia unit.

Please do not order based solely on the model year.

Audi Q5 vehicles of the same year can have different factory multimedia configurations.

Unsure Which Version You Have?

Send us photographs of your:

1. Factory screen
2. Radio / multimedia panel
3. Centre console / gear-selector controls

and we can help determine whether your Q5 is the High Spec or Low Spec version before you purchase.
